Product Description

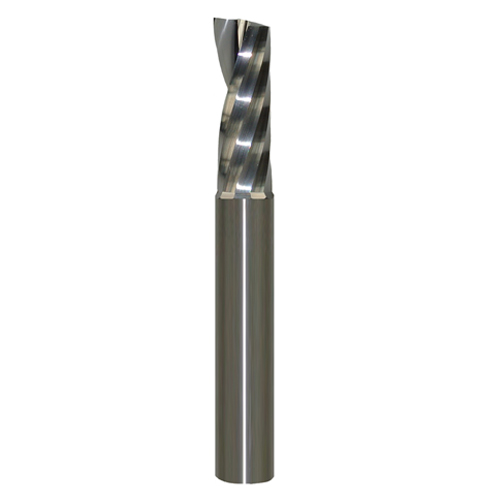

Solid carbide polished spiral cutter positive (Z=1)
» One cutting edge
» Right handed / clockwise
» Positive axial angle
» Upward chip removal
» Bottom side cutting
Application
For working of various plastics (including Polystrene, ABS, PVC, Plexiglas, acetate, hard rubber, formica, methacrylate en polycarbonate).
Through the polishing operation there is no adhesion material on the cutter and therefore the chip evacuation is good.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 3001.010.00 | 1 | 4 | 30 | 3 |
| 3001.010.01 | 1 | 8 | 30 | 3 |
| 3001.015.00 | 1,5 | 6 | 30 | 3 |
| 3001.020.00 | 2 | 8 | 30 | 3 |
| 3001.025.00 | 2,5 | 8 | 30 | 3 |
| 3001.030.30 | 3 | 10 | 50 | 3 |
| 3001.030.31 | 3 | 20 | 60 | 3 |
| 3001.030.00 | 3 | 10 | 50 | 6 |
| 3001.030.01 | 3 | 20 | 60 | 6 |
| 3001.040.40 | 4 | 12 | 50 | 4 |
| 3001.040.41 | 4 | 20 | 60 | 4 |
| 3001.040.00 | 4 | 12 | 50 | 6 |
| 3001.040.01 | 4 | 20 | 60 | 6 |
| 3001.040.02 | 4 | 30 | 70 | 6 |
| 3001.050.00 | 5 | 20 | 60 | 6 |
| 3001.050.01 | 5 | 30 | 70 | 6 |
| 3001.060.00 | 6 | 20 | 60 | 6 |
| 3001.060.01 | 6 | 30 | 70 | 6 |
| 3001.060.02 | 6 | 38 | 80 | 6 |
| 3001.080.00 | 8 | 22 | 70 | 8 |
| 3001.080.01 | 8 | 30 | 80 | 8 |
| 3001.080.02 | 8 | 38 | 80 | 8 |
| 3001.100.00 | 10 | 30 | 70 | 10 |
| 3001.100.01 | 10 | 38 | 80 | 10 |
| 3001.120.00 | 12 | 30 | 70 | 12 |
| 3001.120.01 | 12 | 38 | 80 | 12 |
