Product Description

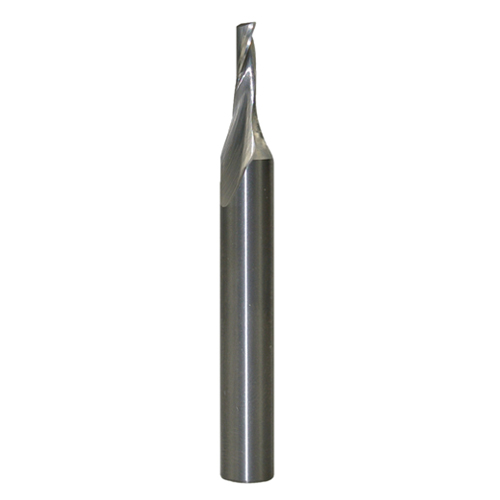

Solid carbide cylindrical spiral cutter for PMMA (acrylate), ACP, massive aluminium and foamed PVC (Z=1)
» One cutting edge
» Right handed / clockwise
» Positive axial angle
» Upward chip removal
» Bottom side cutting
Application
Special geometry with very good results in the treatment of particular PMMA (acrylic) and aluminium composite material (eg. Dibond, Alucopal and Reynobond), solid aluminium and PVC foamed (including Forex, Vikupor, Kömacel, Veka, etc.).
Also for the working of various plastics. (including Polystrene, ABS, PVC, Plexiglass, acetate, hard rubber, formica, methacrylate en polycarbonate)
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 30011.010.00 | 1 | 4 | 30 | 3 |
| 30011.010.01 | 1 | 8 | 30 | 3 |
| 30011.015.00 | 1,5 | 6 | 30 | 3 |
| 30011.020.00 | 2 | 8 | 30 | 3 |
| 30011.025.00 | 2,5 | 8 | 30 | 3 |
| 30011.030.30 | 3 | 12 | 50 | 3 |
| 30011.030.31 | 3 | 20 | 60 | 3 |
| 30011.030.00 | 3 | 10 | 50 | 6 |
| 30011.030.01 | 3 | 20 | 60 | 6 |
| 30011.040.40 | 4 | 12 | 50 | 4 |
| 30011.040.41 | 4 | 20 | 60 | 4 |
| 30011.040.00 | 4 | 12 | 50 | 6 |
| 30011.040.01 | 4 | 20 | 60 | 6 |
| 30011.040.02 | 4 | 30 | 70 | 6 |
| 30011.050.00 | 5 | 20 | 60 | 6 |
| 30011.050.01 | 5 | 30 | 70 | 6 |
| 30011.060.00 | 6 | 20 | 60 | 6 |
| 30011.060.01 | 6 | 30 | 70 | 6 |
| 30011.060.02 | 6 | 38 | 80 | 6 |
| 30011.080.00 | 8 | 22 | 70 | 8 |
| 30011.080.01 | 8 | 30 | 80 | 8 |
| 30011.080.02 | 8 | 38 | 70 | 8 |
| 30011.100.00 | 10 | 30 | 80 | 10 |
| 30011.100.01 | 10 | 38 | 70 | 10 |
| 30011.120.00 | 12 | 30 | 70 | 12 |
| 30011.120.01 | 12 | 38 | 80 | 12 |
