Product Description

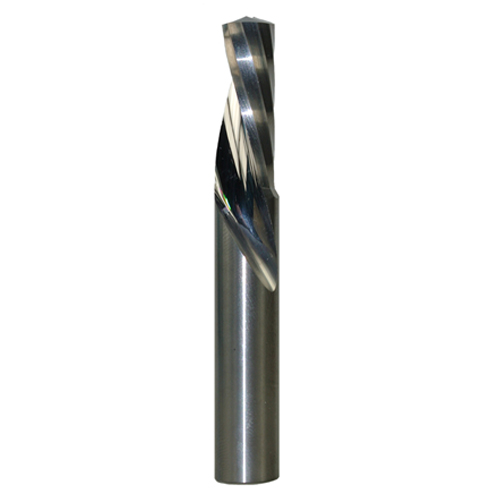

Solid carbide polished spiral cutter negative (Z=1)
» One cutting edge
» Right handed / clockwise
» Negative axial angle
» Downward chip removal
» Cutting diameter equal to shank diameter
Application
For working of various plastics (including Polystrene, ABS, PVC, Plexiglas, acetate, hard rubber, formica, methacrylate en polycarbonate).
Through the polishing operation there is no adhesion material on the cutter and therefore the chip evacuation is good.
Negative helical cutters are mainly used to clamp on thin and/or too difficult to stretch small workpieces. Thus the workpiece stays better by pushing actions.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 3002.010.00 | 1 | 4 | 30 | 3 |
| 3002.010.01 | 1 | 8 | 30 | 3 |
| 3002.015.00 | 1,5 | 6 | 30 | 3 |
| 3002.020.00 | 2 | 8 | 30 | 3 |
| 3002.025.00 | 2,5 | 8 | 30 | 3 |
| 3002.030.30 | 3 | 12 | 50 | 3 |
| 3002.030.31 | 3 | 20 | 60 | 3 |
| 3002.030.00 | 3 | 12 | 50 | 6 |
| 3002.030.01 | 3 | 20 | 60 | 6 |
| 3002.040.40 | 4 | 12 | 50 | 4 |
| 3002.040.41 | 4 | 20 | 60 | 4 |
| 3002.040.00 | 4 | 12 | 50 | 6 |
| 3002.040.01 | 4 | 20 | 60 | 6 |
| 3002.040.02 | 4 | 30 | 70 | 6 |
| 3002.050.00 | 5 | 20 | 60 | 6 |
| 3002.050.01 | 5 | 30 | 70 | 6 |
| 3002.060.00 | 6 | 20 | 60 | 6 |
| 3002.060.01 | 6 | 30 | 70 | 6 |
| 3002.060.02 | 6 | 38 | 80 | 6 |
| 3002.080.00 | 8 | 22 | 60 | 8 |
| 3002.080.01 | 8 | 30 | 70 | 8 |
| 3002.100.00 | 10 | 30 | 80 | 10 |
| 3002.100.01 | 10 | 38 | 70 | 10 |
| 3002.120.00 | 12 | 30 | 70 | 12 |
| 3002.120.01 | 12 | 38 | 80 | 12 |
