Product Description

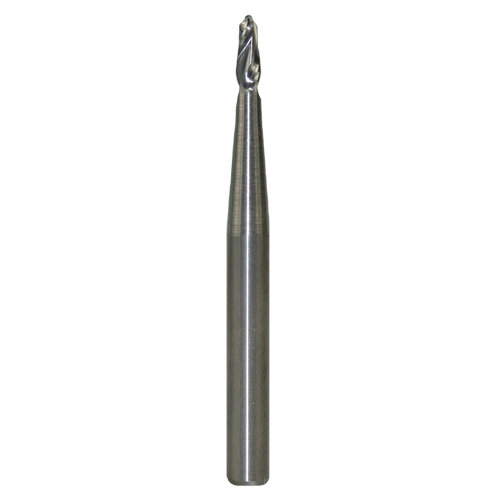

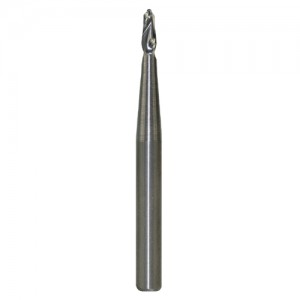

Solid carbide conical cutter with ballnose (Z=3)
» Three cutting edges
» Right handed / clockwise
» Positive axial angle
» Upward chip removal
» With ballnose
» Bottom side cutting
Application
For jointing milling and 3D milling operations.
| Article Nr. | Diameter | Cutting length | Total length | Shank | Angle | Radius |
|---|---|---|---|---|---|---|
| 30034.030.00 | 3 | 6 | 65 | 6 | 2° | 1,5 |
| 30034.040.00 | 4 | 7 | 70 | 6 | 1° | 2 |
| 30034.050.00 | 5 | 8 | 75 | 8 | 1° | 2,5 |
| 30034.060.00 | 6 | 9 | 80 | 8 | 2° | 3 |
| 30034.080.00 | 8 | 12 | 90 | 10 | 2° | 4 |
| 30034.100.00 | 10 | 14 | 100 | 21 | 1° | 5 |
| 30034.120.00 | 12 | 16 | 120 | 16 | 2° | 6 |
