Product Description

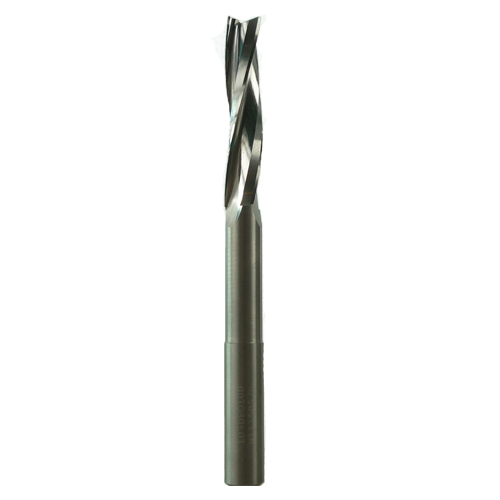

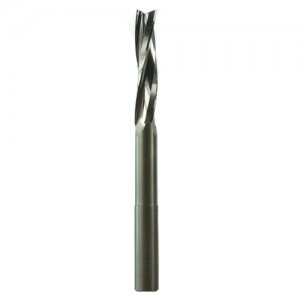

Solid carbide cylindrical spiral cutter with low helix angle (Z=3)
» Three cutting edges
» Right handed / clockwise
» Positive axial angle
» Slight increase in coil
» With corner radius
» Upward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Apllication
For milling of PG and PU foams. On request there is also available version with internal radius for 3D operations.
| Article Nr. | Diameter | Cutting length | Running free | Total length | Shank |
|---|---|---|---|---|---|
| 30051.030.00 | 3 | 15 | 25 | 75 | 3 |
| 30051.040.00 | 4 | 15 | 25 | 75 | 4 |
| 30051.050.00 | 5 | 15 | 35 | 100 | 5 |
| 30051.060.00 | 6 | 20 | 55 | 125 | 6 |
| 30051.060.01 | 6 | 20 | 80 | 150 | 6 |
| 30051.080.00 | 8 | 40 | 35 | 100 | 8 |
| 30051.080.01 | 8 | 20 | 80 | 150 | 8 |
| 30051.100.00 | 10 | 50 | 35 | 130 | 10 |
| 30051.100.01 | 10 | 25 | 90 | 160 | 10 |
| 30051.120.00 | 12 | 50 | 35 | 130 | 12 |
| 30051.120.01 | 12 | 25 | 90 | 160 | 12 |
| 30051.160.00 | 16 | 50 | 35 | 130 | 16 |
| 30051.160.01 | 16 | 70 | 55 | 160 | 16 |
| 30051.160.02 | 16 | 80 | 90 | 210 | 16 |
