Product Description

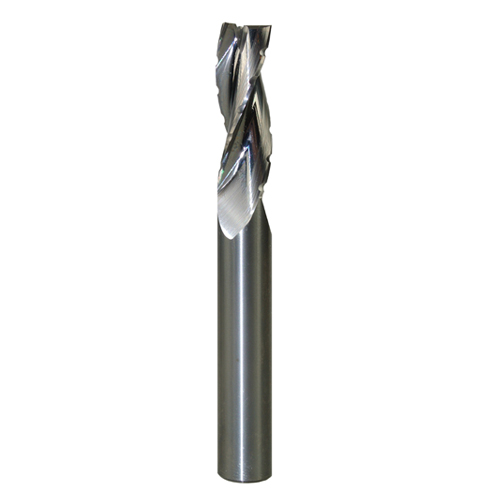

Solid carbide cylindrical spiral cutter with chip breaker (Z=3)
» Three cutting edges
» Right handed / clockwise
» Positive axial angle
» Upward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For jointing and routing milling of various plastics. Special geometry with very good results in working of particularly Polyethyl (PE) and other thermoplastics.
Due to the presence of chip breakers there are no chips left on the tool. Therefore high volumes of chippings can be achieved.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 30052.060.00 | 6 | 27 | 70 | 6 |
| 30052.080.00 | 8 | 22 | 70 | 8 |
| 30352.080.01 | 8 | 32 | 80 | 8 |
| 30052.080.02 | 8 | 42 | 90 | 8 |
| 30352.100.00 | 10 | 32 | 80 | 10 |
| 30052.100.01 | 10 | 42 | 90 | 10 |
| 30352.100.02 | 10 | 52 | 100 | 10 |
| 30052.120.00 | 12 | 32 | 80 | 12 |
| 30052.120.01 | 12 | 42 | 90 | 12 |
| 30052.120.02 | 12 | 52 | 100 | 12 |
| 30052.140.00 | 14 | 32 | 80 | 14 |
| 30052.140.01 | 14 | 42 | 90 | 14 |
| 30052.140.02 | 14 | 52 | 100 | 14 |
| 30052.160.00 | 16 | 32 | 80 | 16 |
| 30052.160.01 | 16 | 42 | 90 | 16 |
| 30052.160.02 | 16 | 52 | 100 | 16 |
