Product Description

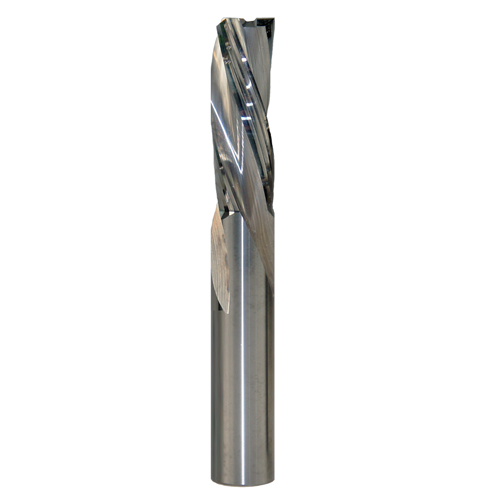

Solid carbide cylindrical spiral cutter negative (Z=3)
» Three cutting edges
» Right handed / clockwise
» Negative axial angle
» Downward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For jointing and routing milling operations, including solid wood, sheeting, medium density fibreboard and various plastics. Perfect finishing touch for bottom side material.
Negative helical cutters are mainly used to clamp on thin and/or too difficult to stretch small workpieces. Thus the workpiece stays better by pushing actions.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 3006.060.00 | 6 | 27 | 70 | 6 |
| 3006.080.00 | 8 | 22 | 70 | 8 |
| 3006.080.01 | 8 | 32 | 90 | 8 |
| 3006.080.02 | 8 | 42 | 100 | 8 |
| 3006.100.00 | 10 | 32 | 90 | 10 |
| 3006.100.01 | 10 | 42 | 100 | 10 |
| 3006.100.02 | 10 | 52 | 110 | 10 |
| 3006.120.00 | 12 | 32 | 90 | 12 |
| 3006.120.01 | 12 | 42 | 100 | 12 |
| 3006.120.02 | 12 | 52 | 110 | 12 |
| 3006.140.00 | 14 | 32 | 90 | 14 |
| 3006.140.01 | 14 | 42 | 100 | 14 |
| 3006.140.02 | 14 | 52 | 110 | 14 |
| 3006.160.00 | 16 | 32 | 90 | 16 |
| 3006.160.01 | 16 | 42 | 100 | 16 |
| 3006.160.02 | 16 | 52 | 110 | 16 |
| 3006.160.03 | 16 | 72 | 130 | 16 |
| 3006.180.00 | 18 | 52 | 110 | 18 |
| 3006.180.01 | 18 | 72 | 130 | 18 |
| 3006.180.02 | 18 | 102 | 160 | 18 |
| 3006.200.00 | 20 | 52 | 110 | 20 |
| 3006.200.01 | 20 | 72 | 130 | 20 |
| 3006.200.02 | 20 | 102 | 160 | 20 |
| 3006.200.03 | 20 | 150 | 210 | 20 |
| 3006.200.04 | 20 | 200 | 260 | 20 |
