Product Description

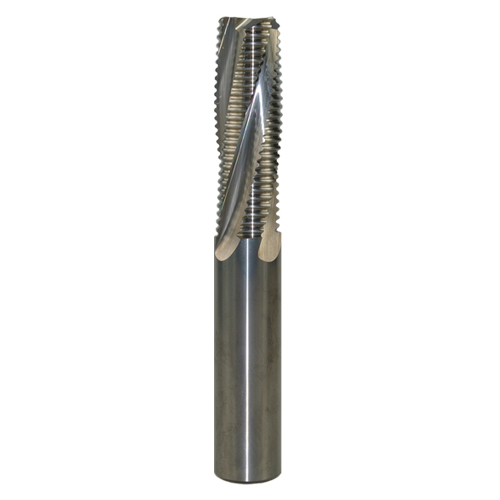

Solid carbide cylinidrical spiral cutter positive with roughing cutter (Z=4)
» Four cutting edges
» Right handed / clockwise
» Positive axial angle
» Downward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Apllication
For milling of fiber, carbon fiber and aramid fiber reinforced plastics.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 30071.100.00 | 10 | 32 | 80 | 10 |
| 30071.100.01 | 10 | 42 | 90 | 10 |
| 30071.100.02 | 10 | 52 | 100 | 10 |
| 30071.120.00 | 12 | 32 | 80 | 12 |
| 30071.120.01 | 12 | 42 | 90 | 12 |
| 30071.120.02 | 12 | 52 | 100 | 12 |
| 30071.140.00 | 14 | 32 | 80 | 14 |
| 30071.140.01 | 14 | 42 | 90 | 14 |
| 30071.140.02 | 14 | 52 | 100 | 14 |
| 30071.160.00 | 16 | 32 | 80 | 16 |
| 30071.160.01 | 16 | 42 | 90 | 16 |
| 30071.160.02 | 16 | 52 | 100 | 16 |
| 30071.160.03 | 16 | 72 | 120 | 16 |
| 30071.180.00 | 18 | 52 | 100 | 18 |
| 30071.180.01 | 18 | 72 | 120 | 18 |
| 30071.180.02 | 18 | 102 | 150 | 18 |
| 30071.200.00 | 20 | 52 | 100 | 20 |
| 30071.200.01 | 20 | 72 | 120 | 20 |
| 30071.200.02 | 20 | 102 | 150 | 20 |
| 30071.200.03 | 20 | 150 | 200 | 20 |
| 30071.200.04 | 20 | 200 | 260 | 20 |
