Product Description

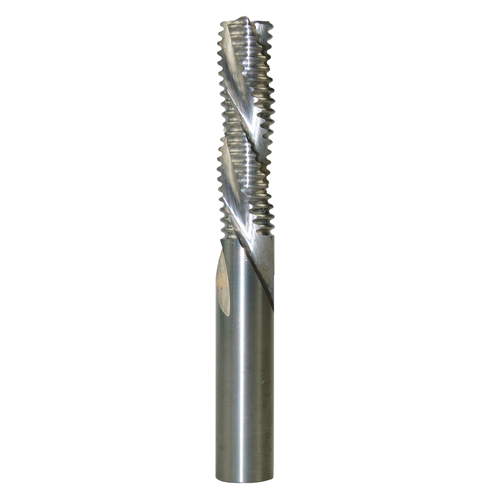

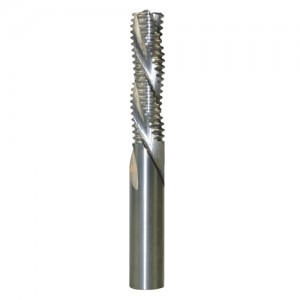

Solid carbide cylindrical spiral cutter negative with roughing cutter (Z=3)
» Three cutting edges
» Right handed / clockwise
» Negative axial angle
» Downward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For pre-cutting including solid wood, sheeting, medium density fibreboard and various plastics.
Negative helical cutters are mainly used to clamp on thin and/or too difficult to stretch small workpieces. Thus the workpiece stays better by pushing actions.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 3008.080.00 | 8 | 22 | 70 | 8 |
| 3008.080.01 | 8 | 32 | 90 | 8 |
| 3008.080.02 | 8 | 42 | 100 | 8 |
| 3008.100.00 | 10 | 32 | 90 | 10 |
| 3008.100.01 | 10 | 42 | 100 | 10 |
| 3008.100.02 | 10 | 52 | 110 | 10 |
| 3008.120.00 | 12 | 32 | 90 | 12 |
| 3008.120.01 | 12 | 42 | 100 | 12 |
| 3008.120.02 | 12 | 52 | 110 | 12 |
| 3008.140.00 | 14 | 32 | 90 | 14 |
| 3008.140.01 | 14 | 42 | 100 | 14 |
| 3008.140.02 | 14 | 52 | 110 | 14 |
| 3008.160.00 | 16 | 32 | 90 | 16 |
| 3008.160.01 | 16 | 42 | 100 | 16 |
| 3008.160.02 | 16 | 52 | 110 | 16 |
| 3008.160.03 | 16 | 72 | 130 | 16 |
| 3008.180.00 | 18 | 52 | 110 | 18 |
| 3008.180.01 | 18 | 72 | 130 | 18 |
| 3008.180.02 | 18 | 102 | 160 | 18 |
| 3008.200.00 | 20 | 52 | 110 | 20 |
| 3008.200.01 | 20 | 72 | 130 | 20 |
| 3008.200.02 | 20 | 102 | 160 | 20 |
| 3008.200.03 | 20 | 150 | 210 | 20 |
| 3008.200.04 | 20 | 200 | 260 | 20 |
