Product Description

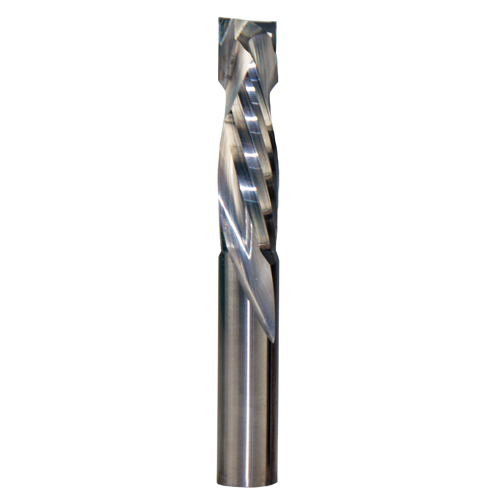

Solid carbide cylindrical spiral cutter up/down (Z=1+1 of Z=2+2)
» 1 + 1 or 2 + 2 cutting edges
» Right handed / clockwise
» Positive and negative axial angle (up/down)
» Downward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For joining milling operations to top and bottom material on double-sidedsheeting, chipboard, medium density fibreboard.
| Article Nr. | Diameter | Cutting length | Total length | Number of cutting edges | Shank |
|---|---|---|---|---|---|
| 3009.050.00 | 5 | 15 | 60 | 1 + 1 | 5 |
| 3009.060.00 | 6 | 20 | 70 | 1 + 1 | 6 |
| 3009.080.00 | 8 | 32 | 90 | 2 + 2 | 8 |
| 3009.100.00 | 10 | 32 | 90 | 2 + 2 | 10 |
| 3009.100.01 | 10 | 42 | 100 | 2 + 2 | 10 |
| 3009.120.00 | 12 | 32 | 90 | 2 + 2 | 12 |
| 3009.120.01 | 12 | 42 | 100 | 2 + 2 | 12 |
| 3009.140.00 | 14 | 32 | 90 | 2 + 2 | 14 |
| 3009.140.01 | 14 | 42 | 100 | 2 + 2 | 14 |
| 3009.160.00 | 16 | 32 | 90 | 2 + 2 | 16 |
| 3009.160.01 | 16 | 42 | 100 | 2 + 2 | 16 |
| 3009.180.00 | 18 | 32 | 90 | 2 + 2 | 18 |
| 3009.180.01 | 18 | 42 | 100 | 2 + 2 | 18 |
| 3009.200.00 | 20 | 32 | 90 | 2 + 2 | 20 |
| 3009.200.01 | 20 | 42 | 100 | 2 + 2 | 20 |
