Product Description

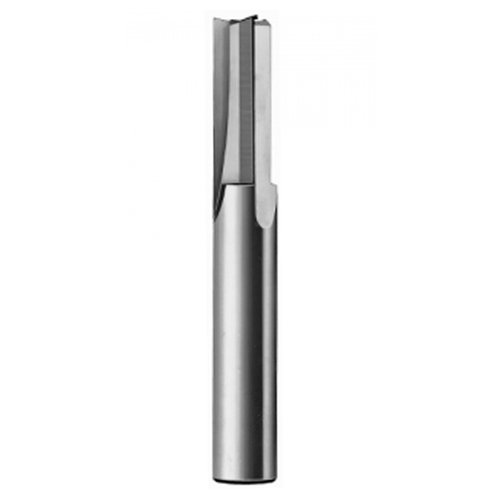

Solid carbide straight shank cutter (Z=3)
» Three cutting edges
» Right handed / clockwise
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For jointing and routing milling operations, including solid wood, sheeting, medium density fibreboard and various plastics.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 31012.060.00 | 6 | 22 | 60 | 6 |
| 31012.080.00 | 8 | 22 | 60 | 8 |
| 31012.080.01 | 8 | 32 | 80 | 8 |
| 31012.100.00 | 10 | 32 | 80 | 10 |
| 31012.100.01 | 10 | 42 | 100 | 10 |
| 31012.120.00 | 12 | 32 | 80 | 12 |
| 31012.120.01 | 12 | 42 | 100 | 12 |
| 31012.140.00 | 14 | 32 | 80 | 14 |
| 31012.140.01 | 14 | 42 | 100 | 14 |
| 31012.160.00 | 16 | 32 | 80 | 16 |
| 31012.160.01 | 16 | 42 | 100 | 16 |
| 31012.160.02 | 16 | 52 | 110 | 16 |
| 31012.180.00 | 18 | 32 | 80 | 18 |
| 31012.180.01 | 18 | 42 | 100 | 18 |
| 31012.180.02 | 18 | 52 | 110 | 18 |
| 31012.200.00 | 20 | 32 | 80 | 20 |
| 31012.200.01 | 20 | 42 | 100 | 20 |
| 31012.200.02 | 20 | 52 | 110 | 20 |
