Product Description

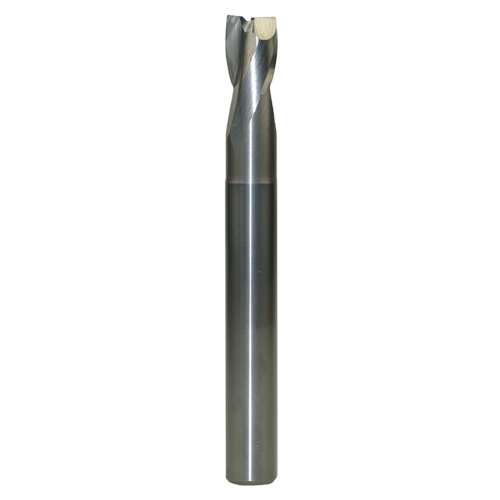

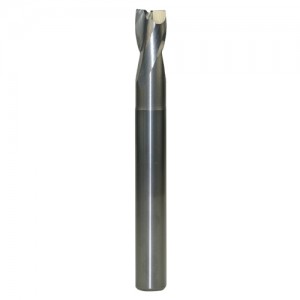

Solid carbide spiral cutter positive (Z=2)
» Two cutting edges
» Right handed / clockwise
» Positive axial angle
» With ballnose
Provide various coatings
Pure aluminium: DLC (Aluspeed)
Aluminium with Si to 5%: DLC (Aluspeed)
Aluminium with Si top 5%: Diamond
| Article Nr. | Diameter | Cutting length | Corner radius | Running free | Total length | Shank |
|---|---|---|---|---|---|---|
| 3202.020.00 | 2 | 3 | 0,1 | 6 | 39 | 3 |
| 3202.030.00 | ||||||
| 3202.020.00 | 2 | 3 | 0,1 | 6 | 50 | 3 |
| 3202.030.00 | 3 | 4 | 0,1 | 9 | 70 | 3 |
| 3202.040.00 | 4 | 5 | 0,1 | 12 | 70 | 4 |
| 3202.050.00 | 5 | 8 | 0,1 | 15 | 70 | 5 |
| 3202.060.00 | 6 | 8 | 0,1 | 18 | 70 | 6 |
| 3202.060.01 | 6 | 8 | 0,1 | 24 | 100 | 6 |
| 3202.080.00 | 8 | 10 | 0,1 | 24 | 70 | 8 |
| 3202.080.01 | 8 | 10 | 0,1 | 32 | 100 | 8 |
| 3202.100.00 | 10 | 14 | 0,1 | 30 | 100 | 10 |
| 3202.120.00 | 12 | 16 | 0,1 | 36 | 100 | 12 |
| 3202.120.01 | 12 | 16 | 0,1 | 48 | 130 | 12 |
| 3202.160.00 | 16 | 20 | 0,1 | 40 | 100 | 16 |
| 3202.200.00 | 20 | 25 | 0,1 | 50 | 110 | 20 |
