Product Description

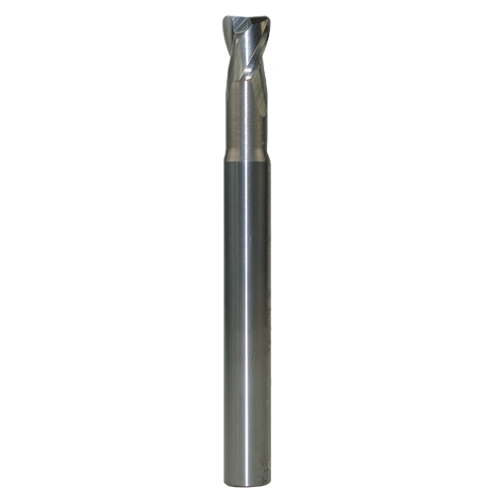

Solid carbide torus spiral cutter for aluminium (Z=2)
» Two cutting edges
» Right handed / clockwise
» Positive axial angle
» With corner angle
» Bottom side cutting
Provide various coatings
Pure aluminium: DLC (Aluspeed)
Aluminium with Si to 5%: DLC (Aluspeed)
Aluminium with Si top 5%: Diamond
| Article Nr. | Diameter | Corner radius | Cutting length 1 | Cutting length 2 | Total length | Shank |
|---|---|---|---|---|---|---|
| 3230.060.00 | 6 | 1,0 | 8 | 20 | 80 | 6 |
| 3230.080.00 | 8 | 1,0 | 10 | 20 | 80 | 8 |
| 3230.100.00 | 10 | 1,5 | 10 | 20 | 80 | 10 |
| 3230.120.00 | 12 | 1,5 | 12 | 35 | 80 | 12 |
| 3230.140.00 | 14 | 2,0 | 14 | 45 | 90 | 14 |
| 3230.160.00 | 16 | 2,0 | 16 | 45 | 90 | 16 |
| 3230.180.00 | 18 | 2,0 | 18 | 55 | 100 | 18 |
| 3230.200.00 | 20 | 2,0 | 20 | 55 | 100 | 20 |
