Product Description

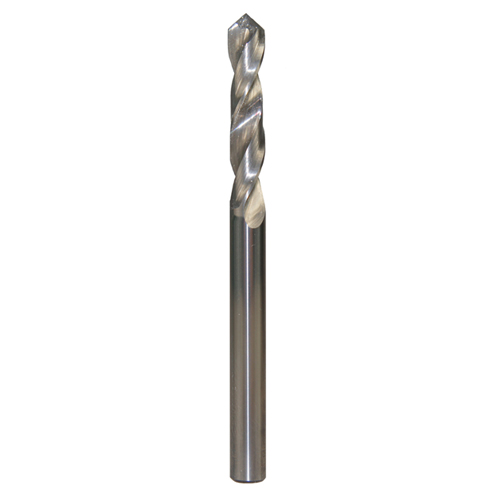

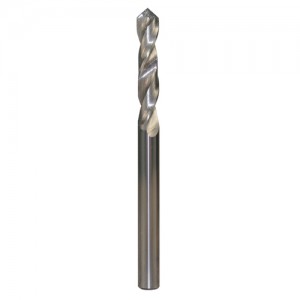

Solid carbide twist drill for plastic / aluminium (Z=2)
» Two cutting edges
» Right handed / clockwise
» Positive axial angle
» Upward chip removal
» Bottom side cutting
» Cutting diameter equal to shank diameter
Application
For drilling operations in different plastics and aluminium.
| Article Nr. | Diameter | Cutting length | Total length | Shank |
|---|---|---|---|---|
| 3601.030.00 | 3 | 18 | 50 | 3 |
| 3601.040.00 | 4 | 24 | 60 | 4 |
| 3601.060.00 | 6 | 30 | 80 | 6 |
| 3601.080.00 | 8 | 40 | 100 | 8 |
| 3601.100.00 | 10 | 50 | 100 | 10 |
| 3601.120.00 | 12 | 60 | 130 | 12 |
| 3601.140.00 | 14 | 70 | 130 | 14 |
| 3601.160.00 | 16 | 70 | 130 | 16 |
| 3601.200.00 | 20 | 80 | 150 | 20 |
